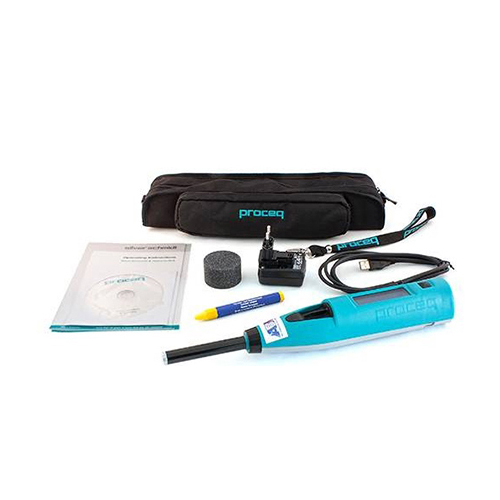

Type N PROCEQ Silver Schmidt ( CO-550.5S) Test Hammer Digital

TEST HAMMER DIGITAL Type N PROCEQ Silver Schmidt ( CO-550.5S)

The SilverSchmidt ST/ PC is the first integrated concrete test hammer featuring true rebound value and unmatched repeatability.
Two factors contribute to the improved performance of this concrete test hammer over its predecessors:

• Velocity based detection of the rebound quotient
• The lightweight hybrid design of the impact plunger is made from aerospace alloy, matched to the elastic properties of the concrete and equipped with a hardness steel cap.

Independent validation testing by BAM ( Federal Institute for Materials Research and Testing, Germany) has shown the SilverSchmidt ST/ PC to have less dispersion than the classical concrete test hammer over the entire range.

The unique design and high quality construction of the concrete test hammer SilverSchmidt ST/ PC makes rebound hammer testing quicker and more accurate than ever before.

Technical Data

• Mechanical data : Type ST N / PC N concrete test hammer
• Impact energy : 2.207 Nm
• Hammer mass : 135 g
• Spring constant : 0.79 N/ mm
• Spring extension : 75 mm ( 2.95” )
• Housing dimensions : 55 x 55 x 255 mm ( 2.16” x 2.16” x 9.84” )
• Weight : 570 g ( 1.3 lb)
• PC application : Only for the concrete test hammer SilverSchmidt versions PC N and PC L: Hammerlink Software
• Display : 17 x 71 pixels; graphic / alphanumeric
• Power consumption : ~ 13 mA measuring, ~ 4 mA setup and review, ~ 0.02 mA idle
• Battery life : > 5000 impacts ( before recharging)
• Charger connection : USB type B ( 5V, 100 mA)
• Concrete compressive strength : 10-100 N/ mm2 ( 1450-14500 psi)
• Operating temperature : 0 to 50 ° C ( 32 to 122 ° F)
• Storage temperature : -10 to 70 ° C ( 14 to 158 ° F)
